Drawing

Sector

Product in-line control and automatic management of the production process

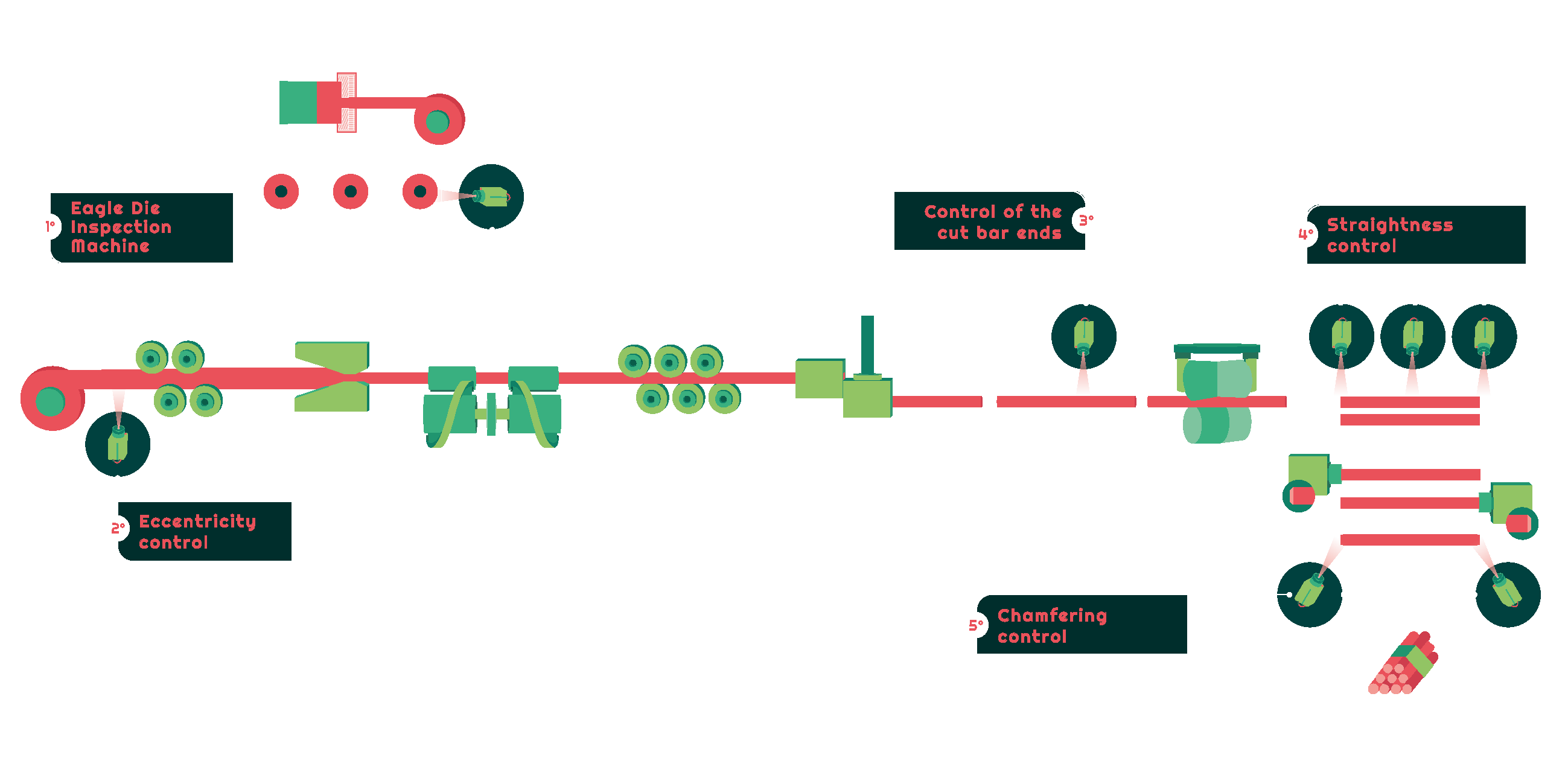

Towards a fully controlled and automated drawing process, Imago has designed innovative and efficient control devices to constantly maintain high production standards. Operating in-line and without contact, these systems interact to monitor the entire production process and act on the parameters of the various line components, respecting the cycle time. Thanks to the always available production data, it is possible to intervene in real time in case of drifts and repeated errors due to variables on the machinery.

Eagle Die Inspection Machine

Dimensional control and cleaning of extrusion dies

> Verifies the dimensional compliance of the extrusion shapes, the integrity of the dies and detects the presence of unwanted residues.

Straightness control

> based on different levels of straightness, it discards the bars that do not meet the parameters and automatically acts on the Cross Roll Straightening Machine or on the die to improve production

Control of the cut bar ends

> Checks the regularity of the cut bar and detects the presence of bendings at the bar ends

> Checks the functionality of the first adjustment of the die and, if necessary, makes a second adjustment

> Acts on the straightener to refine the straightness of the bar

Eccentricity Control

> Checks for possible ovalization of the bar for a first adjustment of the die positioning

> Measures the bar diameter to set the format parameters

Chamfering Control

> Checks the centrality and regularity of the chamfering, and if necessary, it acts on the vertical motorization of the two Chamfering machines
Trafileria

Contact us now to receive the brochure and your free feasibility study

By sending this form, I declare that I have read the privacy policy and authorize Imago Vision to use my personal data in order to carry out the requested service, pursuant to EU regulation 679/2016 (GDPR): Privacy Policy.

I authorize the use of personal data for user analysis and profiling as indicated in the Privacy Policy.

Legend

Designed for the operator, it ensures intuitive and guided interaction. The simplicity of our systems managing further optimizes productivity.

Inspection data and related images, that are generated by objectified and tracked checks for each individual part, represent a safeguard for the manufacturer and a guarantee for its customers.

Thanks to the storage and processing of data obtained from all the systems, the entire production process is constantly optimized to guarantee its correct and continuous functioning over time.

Features

Remote Assistance
Track & Trace
IoT 4.0
Web Interface
Production data analysis
